The Permavent 6 m Universal Ventilated Dry Ridge System is designed to provide a mechanically fixed, weather-resistant ridge detail for pitched tiled roofs. The system forms a continuous weathertight seal along the ridge line and is compatible with most common ridge tile profiles.
The system provides continuous high-level roofspace ventilation equivalent to 5,000 mm2/m at the ridge, in accordance with the requirements of BS 5250:2021, supporting moisture management within the roof void. It is installed without the use of mortar, reducing reliance on wet trades and allowing consistent installation in varying weather conditions.
The dry ridge system is intended to deliver long-term performance through mechanically fixed components that accommodate roof movement while maintaining ridge stability and wind uplift resistance and weather resistance.

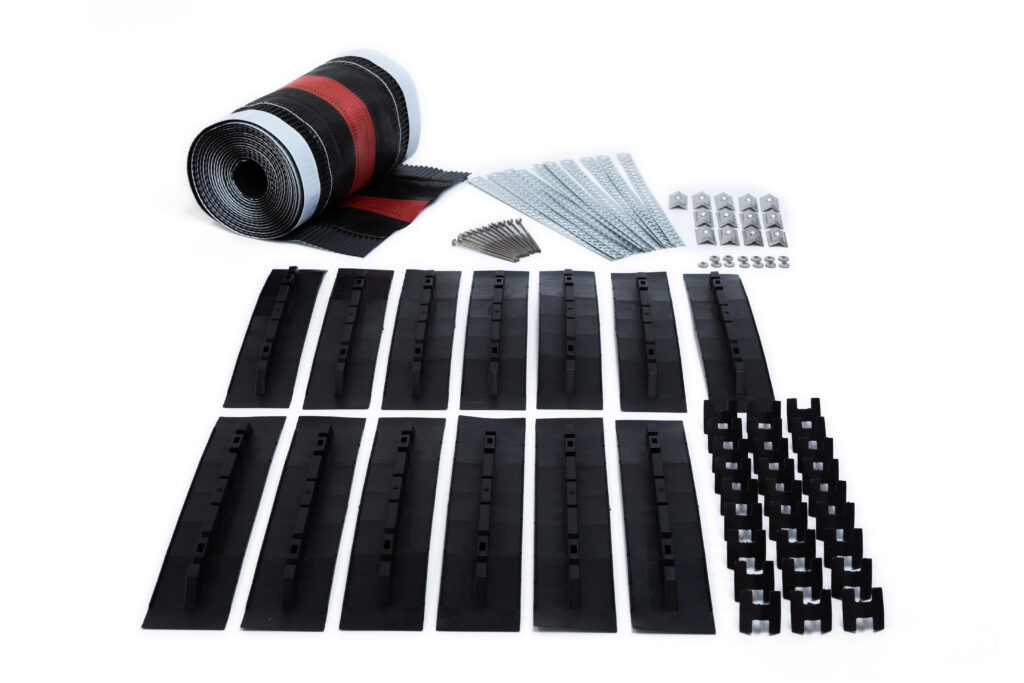

The Universal Ridge Kit contains:

• 310mm x 6m ridge roll
• 10 x ridge batten straps
• 13 x Screws & washer seals
• Ridge unions, including: 13 x Metal clamping plates, 26 x Outer clips.

• Sealing and high level ventilation of the roof space at the ridge line.
• Protects against wind uplift, water ingress and general deterioration.
• Provides the recommended 5,000 mm2/m of continuous ventilation at the ridge.
• Compatible with most types of ridge tiles including concrete, clay, half round and angled.
• Suitable for ridge and hip tile mechanical fixing.
• Complies with BS 8612:2018 and meets the recommendations in BS 5534:2014+A2:2018 and BS 5250:2021.
