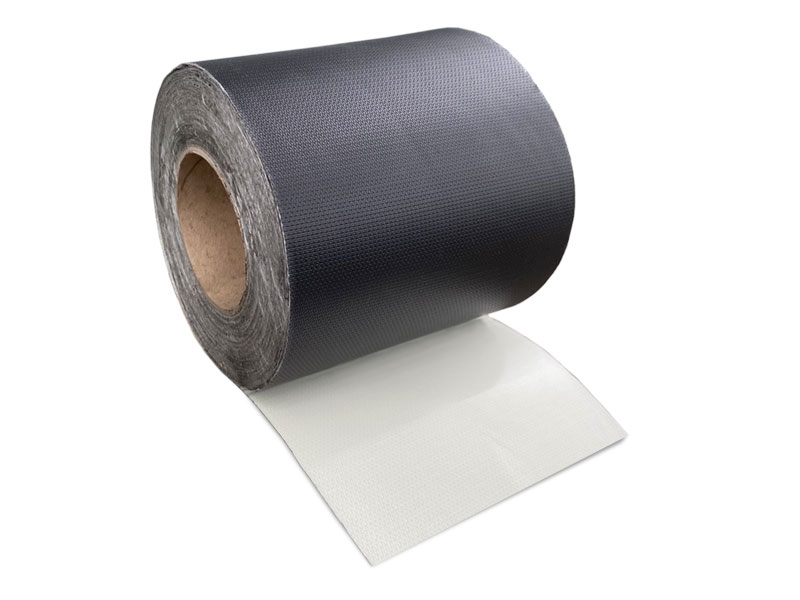

Safeshield Revela

Safeshield Revela

Description

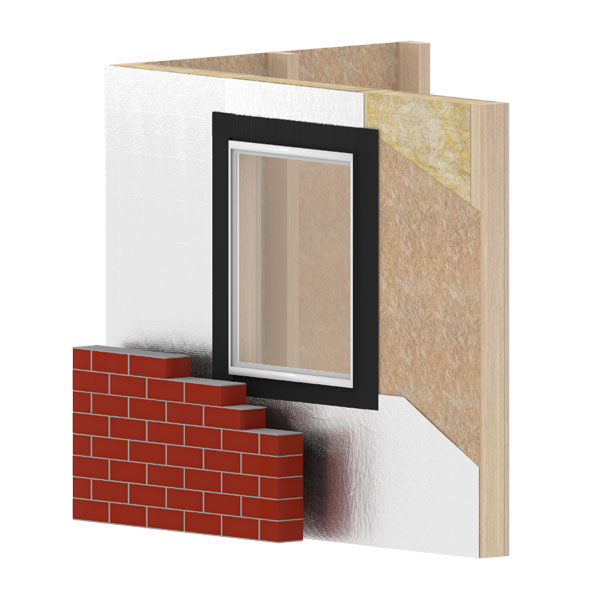

Safeshield Revela is an airtight, vapour-permeable, Class A2 fire-safe membrane providing a watertight and airtight seal around windows, doors, and the interface between SFS and a concrete frame.
Safeshield Revela is suitable for all types of walling applications and can be used safely in high-rise and high-risk buildings (e.g., schools, hospitals, care homes) to prevent the risk of fire spread.
Safeshield Revela is also suitable for timber frame and modular off-site construction. The unique composition of Revela resists the spread of fire across the building’s cavity.
Safeshield Revela can be installed on any substrate and is available in a number of different roll widths depending on the application.



Shortlisted for “Product Innovation” at the Offsite Awards 2025.

Features

  • Classification A2-s1,d0 reaction to fire
  • UV stable with > 9 months exposure time
  • Ease of installation – installed onto any substrate
  • Superior nail and tensile strength
  • High vapour permeability
  • Independently tested to EN 13501-1
  • Available in 150mm x 20m, 150mm x 20m and 150mm x 20m rolls.

          *Other sizes available by request.

Resources

Accreditations

Product Guides, Fitting Instructions & Product Guarantee

Specifications

Reaction to fire to EN 13501-1A2-s1, d0
Resistance to water penetration, classW1
Water vapour transmission properties (sd), m0.06
Nail tear resistance to EN12310-1 (MD), N/50mm286
Nail tear resistance to EN12310-1 (CD), N/50mm321
Tensile strength to EN12311-1 (MD), N/50mm4540
Tensile strength to EN12311-1 (CD), N/50mm2975
Flexibility at low temperature to EN1109:2013-40°C
Weight, g/m2530
